Product Overview
This automated clips insertion machine is specifically designed for the high-efficiency assembly of automotive plastic parts, such as door panels, pillar trims, engine covers, and bumper components. Powered by servo motion control and equipped with precision tooling, it enables accurate positioning and automatic insertion of plastic or metal clips, fasteners, and push pins without manual labor.
The system supports multi-station configurations, customizable tooling, and real-time parameter monitoring, making it ideal for large-scale automotive production environments that demand speed, precision, and traceability.
Key Features
- Servo-Driven Press System – Ensures stable clip insertion force and accurate depth control
- Smart Detection System – Monitors clip presence, orientation, and insertion result
- Multi-Clip Feeder & Automatic Loading – Supports multi-point insertion in a single cycle
- Flexible Tooling Design – Adaptable to different part geometries and clip types
- PLC + HMI Control System – Real-time process data, error diagnostics, and production counting
- Safety Protection – Integrated light curtains, emergency stop, and automatic fault lockout
Application Scenarios

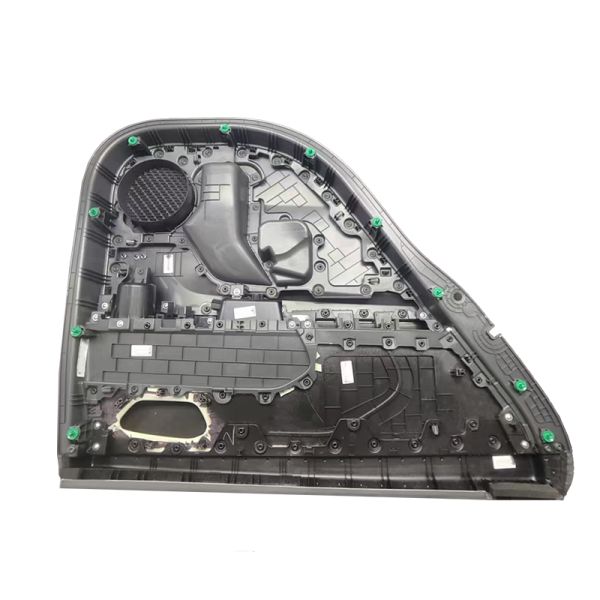

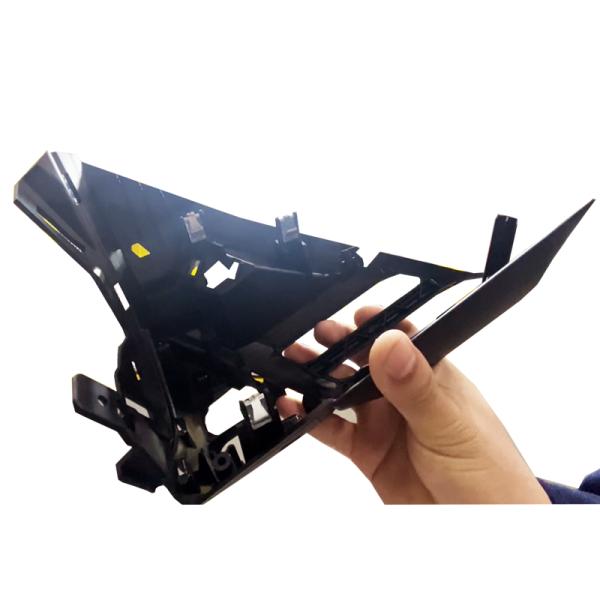

The machine is suitable for plastic products such as interior and exterior trim panels, fenders, wheel arches, roofs, and trunk panels of car doors, bumpers, and guards, and can automatically install clips. The machine can be equipped with customized molds according to different products and is capable of mold change.
Supported Clip Types:
Push clips, plastic clips, snap-fit clips, and OEM-specified fasteners
Technical Specifications
|
Item Name
|
Servo-Driven Automated Clip Insertion Machine
|
|
Model
|
HZ-KK
|
|
Voltage
|
380V
|
|
Control System
|
PLC + Touchscreen HMI
|
|
Clip Type Supported
|
Plastic Clips, Snap Locks
|
|
Ambient Temperature
|
-10℃~50℃
|
|
Machine/Mold Weight
|
Customized
|
|
Machine/Mould Size
|
Customized
|
|
Safety Protection
|
Light Curtain
|
|
Mold Change Type
|
Front or Side Loading, Quick-Change Available By Manual
|
After-Sales Service Provided
1-Year Quality Warranty
Remote Technical Support (via video and software)
On-site Commissioning & Operator Training (optional)
Quick Replacement of Critical Parts
Your Trusted Automotive Assembly Automation Partner
With over 12 years of experience in plastic welding and intelligent automation, HUAZHUO Automation provides world-class customized solutions for the global automotive supply chain. Our automated machines are widely used by Tier 1 and Tier 2 suppliers across Asia, Europe, the Middle East, and Latin America.
Related Machines We Also Offer:
Ultrasonic Plastic Welding Machines
Servo Hot Plate Welders
Automated Riveting & Heat Staking Systems
Laminating & Covering Equipment for Car Interiors
Bumper Punching and Radar Cover Welding Stations
